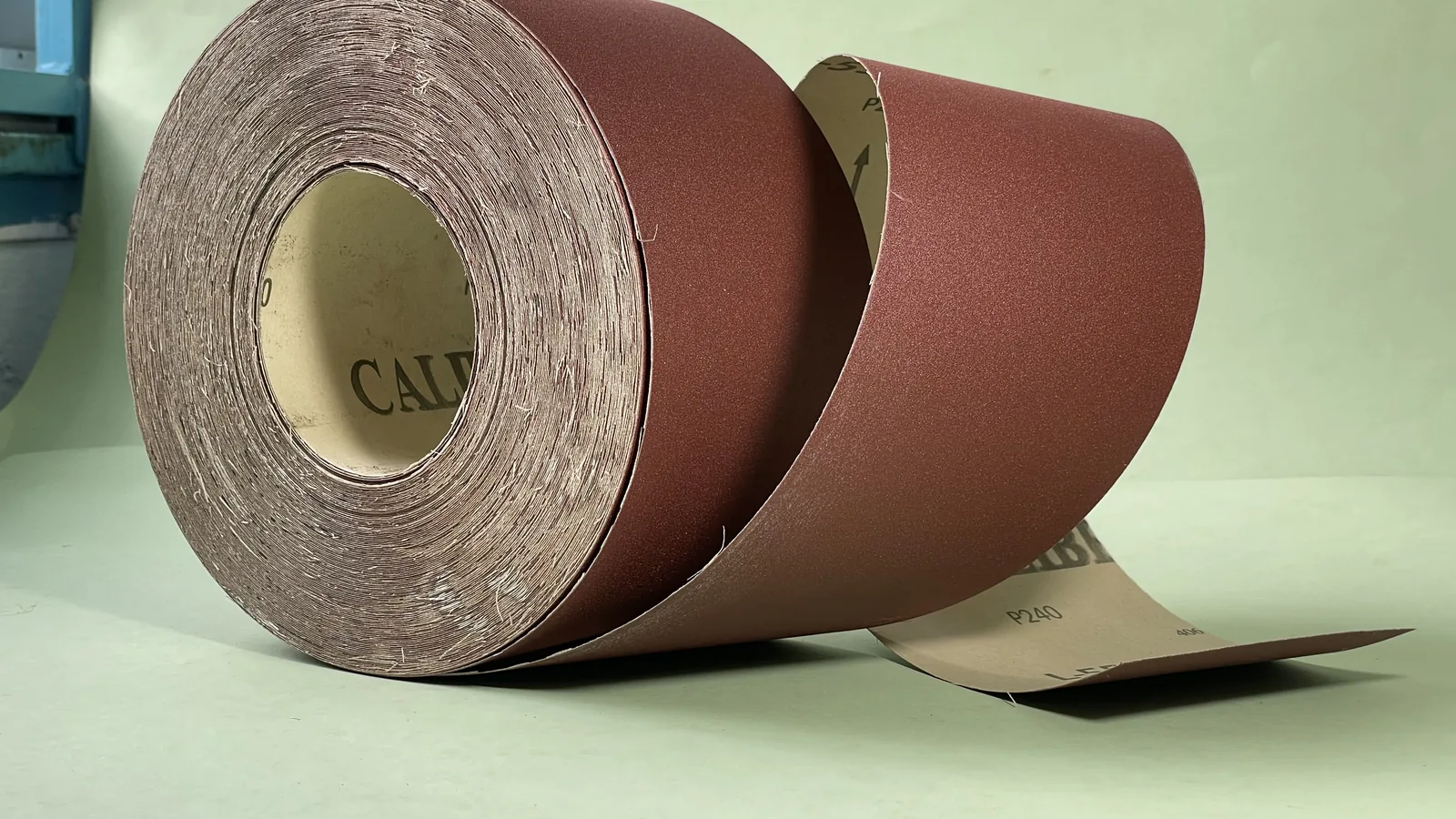

Paper-backed sanding rolls supplied by Citra Oasis in Malaysia

Abrasive rolls · Malaysia

Abrasive rolls selected around the work and finish.

Citra Oasis supplies L-555 paper sanding rolls and CJ 4000 cloth sanding rolls in standard 50-metre lengths, common widths and customised dimensions for Malaysian industrial applications.

Request a roll quotationHow to specify a roll
Paper and clothBacking options
50 mStandard roll length
Custom widthsConverted to requirement
Malaysia-wideSales and support

Two roll constructions for different sanding work.

Choose between the controlled support of paper backing and the flexibility of cloth backing. Both are supplied in standard 50-metre rolls and can be customised to suit the requirement.

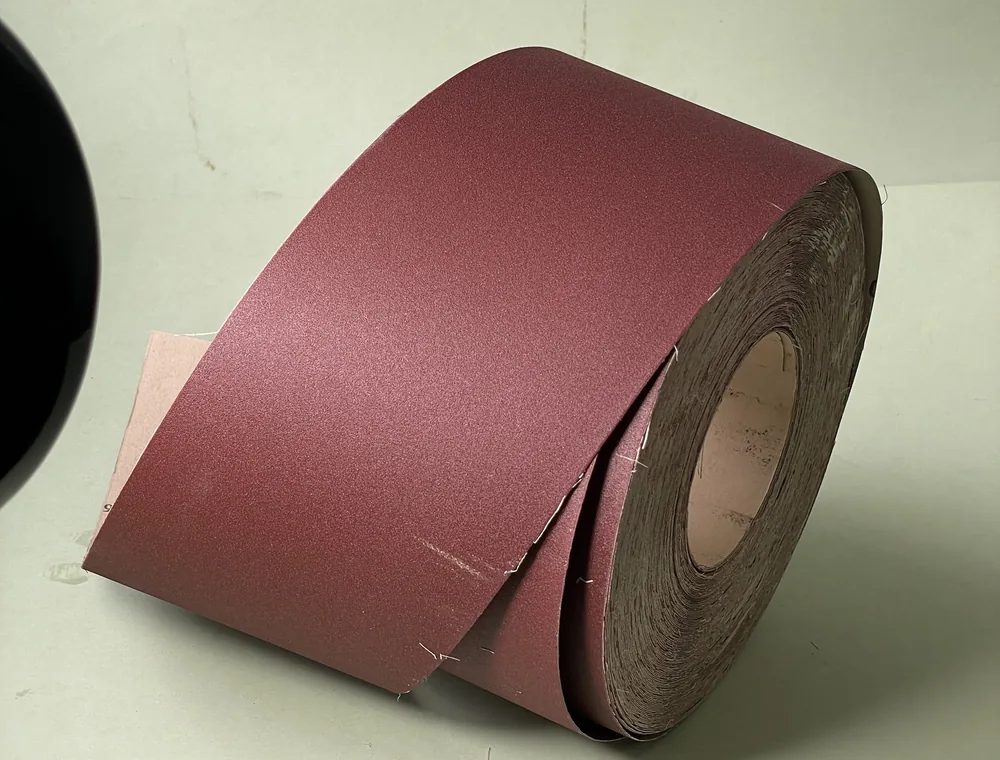

L-555 aluminium oxide paper-backed sanding roll
Paper-backed sanding roll

CALIBER L-555

An aluminium oxide paper abrasive with antistatic backing, open coating and resin bonding. Its construction supports chip clearance and helps reduce loading in suitable sanding applications.

Common widths
100 mm and 300 mm
Standard length
50 metres
Grit range
P40–P400
Customisation
Other dimensions available on request

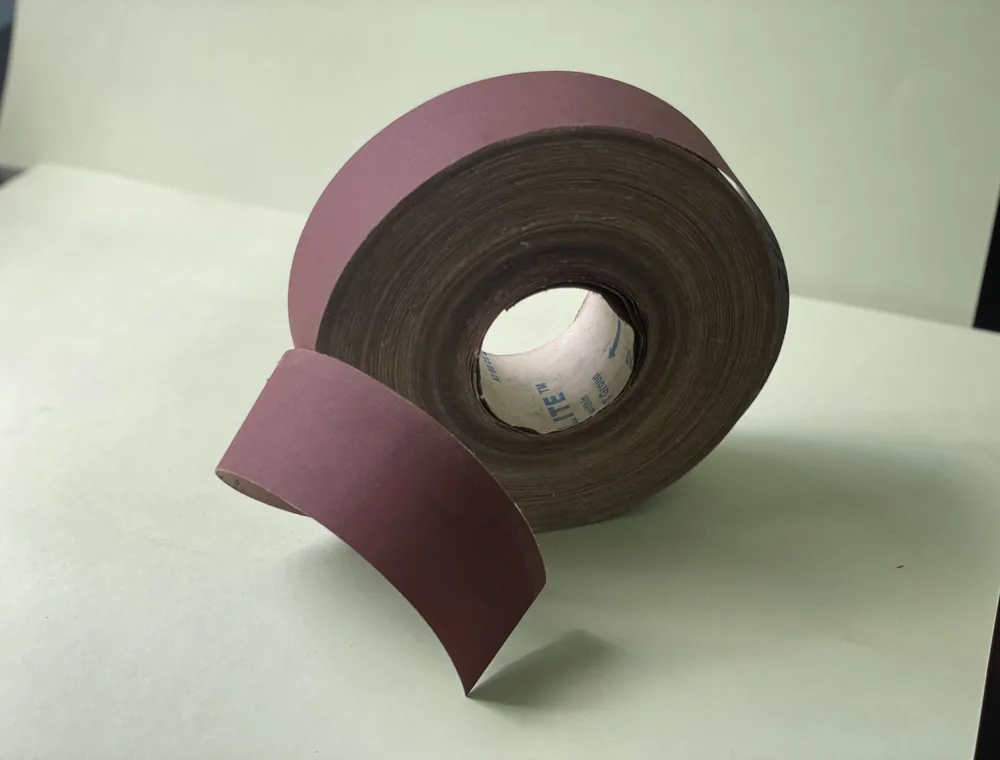

CJ 4000 aluminium oxide cloth-backed sanding roll
Cloth-backed sanding roll

CALIBER CJ 4000

A general-purpose aluminium oxide abrasive on flexible J-weight cloth with full resin bonding. It is suited to hand or compatible machine sanding of wood and metal, including curved and shaped surfaces.

Common widths
50 mm and 100 mm
Additional widths
25 mm and 150 mm
Standard length
50 metres
Grit range
P60–P600
Customisation
Other dimensions available on request

Quotation checklist

How to specify an abrasive roll.

These details help narrow the backing, grit and construction before a product is recommended for evaluation.

Understand coated abrasive construction →
01
Roll width and length

State the required dimensions in millimetres and confirm any equipment limits.

02
Hand, machine or conversion use

Describe exactly how the roll will be cut, held, fed or processed.

03
Workpiece material

Name the timber, board, metal, paint system or other surface being sanded.

04
Required P grit

Give the current grit sequence and identify where removal, scratches, loading or finish problems occur.

05
Current abrasive

Share the brand, product code and backing if known. Clear photographs can help with identification.

06
Required result and quantity

Define the desired preparation or finish and the quantity needed for evaluation or production.

Select the complete roll construction.

Backing, grain, coating and grit work together. A roll suited to one material or sanding method may not suit another.

Selection factorWhy it mattersQuestions to answer
BackingAffects flexibility, strength and how the abrasive conforms to the surfaceHand use, machine use or conversion? Flat surface, edge, profile or contour?
Abrasive grainInfluences cutting behaviour and durability on different materialsWood, steel, paint or another workpiece?
Coating densityChanges grain coverage and chip clearanceIs loading a problem? Is the material soft, resinous or painted?
P gritControls removal rate and the remaining scratch patternWhat must be removed, and what finishing step follows?
DimensionsDetermine compatibility, handling and material yieldWhat width and length are required by the process or machine?
Confirm suitability through a controlled trial.

Abrasive performance also depends on pressure, speed, extraction, workpiece condition and operator practice. Evaluate a complete specification before wider production use.

Paper-backed or cloth-backed sanding roll?

Backing choice is an application decision, not a quality ranking. Use the required flexibility, strength and sanding method to narrow the option.

L-555 · Paper backing

Open-coated paper abrasive

For suitable general sanding where paper support, chip clearance and reduced loading are important selection factors.

CJ 4000 · J-weight cloth

Flexible general-purpose abrasive

For suitable wood and metal sanding, including curved and specially shaped surfaces that need greater conformability.

Need help choosing?

Start with the complete application

Share the material, dimensions, current abrasive, process and target finish so the options can be narrowed responsibly.

Related abrasive formats and selection guides.

Follow the format or technical question closest to your process.

Sanding beltsCustom dimensions and belt selection → Sandpaper 101Grain, backing, grit and coating → Grit sequence guidePlan removal and finishing steps →

Abrasive roll FAQ.

Clear specifications make product selection and sample evaluation more useful.

What are the standard abrasive roll dimensions and grit ranges?

The standard roll length is 50 metres. L-555 paper rolls are available in P40–P400, with common widths of 100 mm and 300 mm. CJ 4000 cloth rolls are available in P60–P600, with common widths of 50 mm and 100 mm and additional 25 mm and 150 mm widths.

What is the difference between L-555 and CJ 4000 sanding rolls?

L-555 is an open-coated, paper-backed aluminium oxide abrasive. CJ 4000 is a flexible J-weight cloth-backed aluminium oxide abrasive suited to general-purpose wood and metal sanding, including curved or shaped surfaces.

Can sanding roll dimensions be customised?

Yes. Citra Oasis can customise abrasive roll dimensions subject to product construction, grit, material width and availability. Provide the required width, length, application and quantity for confirmation.

Which grit should I choose?

The starting grit depends on what must be removed; the finishing grit depends on the next operation and required scratch pattern. Review the grit sequence guide and evaluate the full process.

Send us your abrasive roll specification.

Include width and length, use method, workpiece, P grit, current product, quantity and the result you need. You can review the generated WhatsApp enquiry before sending it.

Request an abrasive roll quote
